Uavionix PingStation 3

Trusted, private situational awareness of local airspace and airport surfaces with pingStation 3

From uAvionix the pingStation 3 receives both ADS-B frequencies (978MHz UAT and 1090MHz) simultaneously with a single installation when most competitors are single-frequency. Don’t miss half the picture! pingStation 3 allows you to track ADS-B-equipped aircraft as far as 200+ miles away.

Features:

  • Networkable Weatherproof 978/1090 ADS-B Receiver Trusted, private situational awareness of local airspace and airport surfaces with pingStation 3

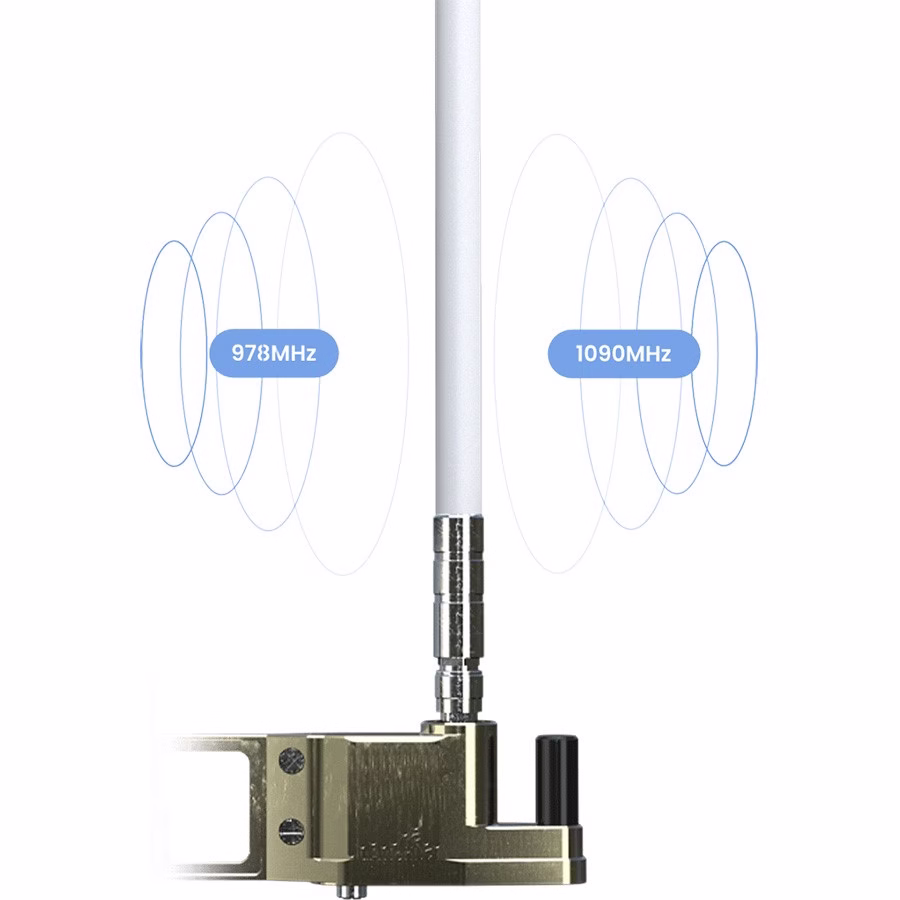

  • Dual-band ADS-B Reception pingStation 3 receives both ADS-B frequencies (978MHz UAT and 1090MHz) simultaneously with a single installation when most competitors are single-frequency. Don’t miss half the picture! pingStation 3 allows you to track ADS-B-equipped aircraft as far as 200+ miles away.
  • Enterprise Data Formats pingStation 3 now supports ASTERIX CAT 021 message formats, for global compatibility with air traffic management standards. Additional formats support integration with any display system or data logger.
  • Mode S MLAT Capable pingStation 3 is MLAT Ready1. The internal GPS provides high-resolution timestamps for each message received. This allows a pingStation 3 sensor constellation to be used to multilaterate on Mode S transponder traffic, using time-difference-of-arrival (TDOA) to calculate aircraft positions.                                                                                                                                                                                                                             1 Requires 3rd-party multilateration software.
  • Weather Resistant and Easy to Deploy Say goodbye to difficult coax cable runs that reduce your reception performance. The all-in-one pingStation 3 includes the receiver, GPS, and antenna in an IP67 weatherproof enclosure, with power and data provided by a single Power-Over-Ethernet (POE) network cable connected right to your LAN. The quick pole-mount clamp design makes installation a snap.

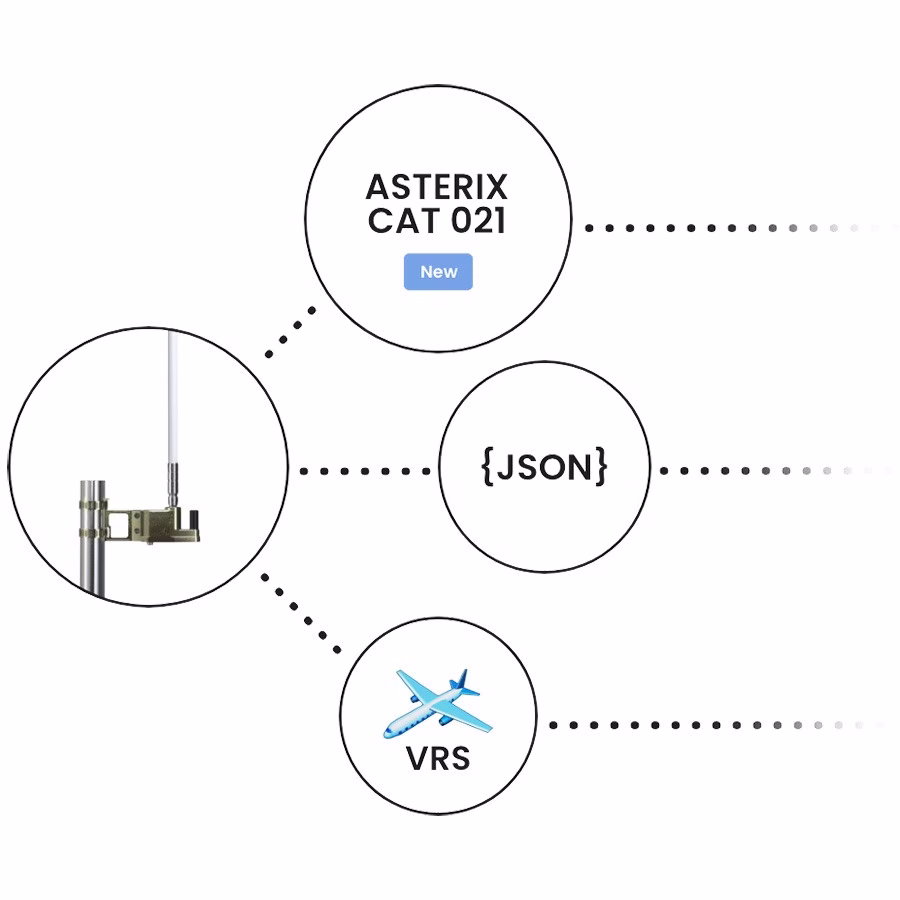

  • Your data, Your Way pingStation 3 provides data in several formats easily integrated into any display or analytical application, including UAS Ground Control Stations, Unmanned Traffic Management (UTM) Solutions, and Flight Information Displays.

Tech Specs:

Specification Value
Input Voltage / Power 44-57V / 350mA Power over Ethernet
Size 673.70 x 178.45 x 36 mm
Weight 545 grams
Receive
MTL 1090MHz
Dynamic Range
-88dBm
-79 to 0dBm
MTL 978MHz
Dynamic Range
-93dBm
-90 to -3dBm
Interface Asterix CAT021
Ethernet (JSON UDP)
Compressed VRS (Virtual Radar Server)

User and Installation Guide

 Intergration Guide

Support Articles & Downloads

Shipping is provided via Australia Post. Please contact our office with your shipping address for a formal quote.
